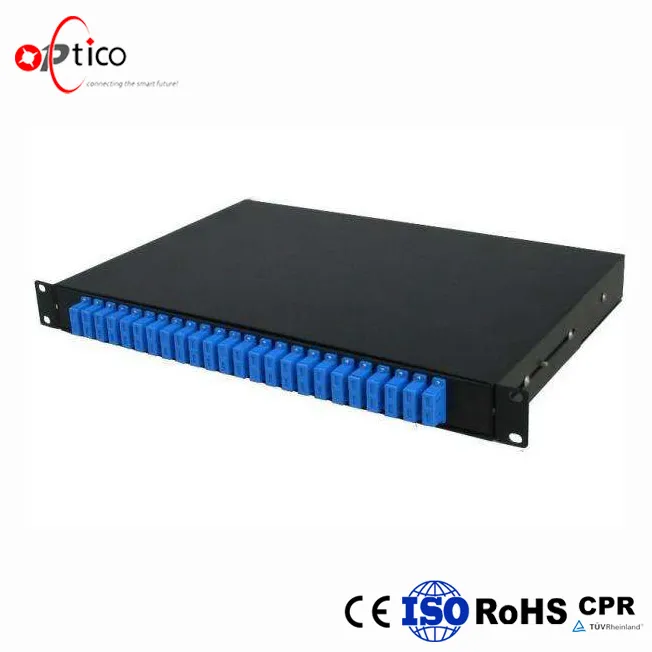

1U Rack Mount PLC Splitter

1U Rack Mount PLC Splitter

1U Rack Mount PLC Splitter: Place of Origin: Shenzhen, China (Mainland) Brand Name: OPTICO Model Number: Rack Mount PLC splitter Model: 1*32 sc/apc PLC splitter Type: 1U rack mounted plc splitter Fiber Type: G657A1 Wavelength: 1260-1650nm Diameter: 2.0 mm Outer jacket: PVC Length: 1M, 1.5M,2M as your request Application: FTTH FTTB FTTX Network
Chat Now

Product Details

1U Rack Mount PLC Splitter

 PLC planar waveguide optical splitter produced by optico is an integrated waveguide optical power distribution device based on quartz substrate. Like coaxial cable transmission, optical network system also needs to couple, branch and distribute optical signals, which needs optical splitter to realize. At the same time, it has multiple inputs and outputs. The rack type PLC splitter adopts modular design, positive operation, flexible installation and convenient construction and maintenance.

Package  typeRack MountPort  configuration type1x32
Fiber typeSM  G.657A1Connector  typeSC/APC
insertion loss ≤17dBReturn  loss≥50dB
Loss uniformity≤1.6dBdirectional≥55dB
Polarization dependent loss≤0.3dBTemperature  dependent loss≤0.8dB
Wavelength dependent loss≤0.5dBWorking  wavelength1260~1650nm
working temperature-40~85°CStorage  temperature-40~85°C



The inner structure of our PLC Splitter

the inner structure of our PLC Splitter

Advantages of our PLC Splitter
The light signal is evenly distributed

The light signal is evenly distributed


Low PDL, high stability


The appearance design of product packaging is exquisite and firm

Scenes of application


PON


PON Networks

lan

LAN Networks

wan

WAN Networks

100% tested before delivery


End surface test

End surface Test

IL and RL Test

IL RL Test

High and low temperature cycle

Temperature cycle test

Types of our certificates



CE

CE

CPR

CPR

ISO

ISO

RoHS

ROHS

7-15 DAYS

Types of delivery way

PLC optical splitter is one of the most important passive components in the optical fiber link. It is an optical fiber tandem device with multiple terminals and multiple outputs. Among them, its three most important components are the input, output and chip of the optical fiber array. The design and assembly of these three components play an important role in the stable and normal operation of PLC optical splitter Use.

Package  typeRack MountPort  configuration type1x32
Fiber typeSM  G.657A1Connector  typeSC/APC
insertion loss ≤17dBReturn  loss≥50dB
Loss uniformity≤1.6dBdirectional≥55dB
Polarization dependent loss≤0.3dBTemperature  dependent loss≤0.8dB
Wavelength dependent loss≤0.5dBWorking  wavelength1260~1650nm
working temperature-40~85°CStorage  temperature-40~85°C
