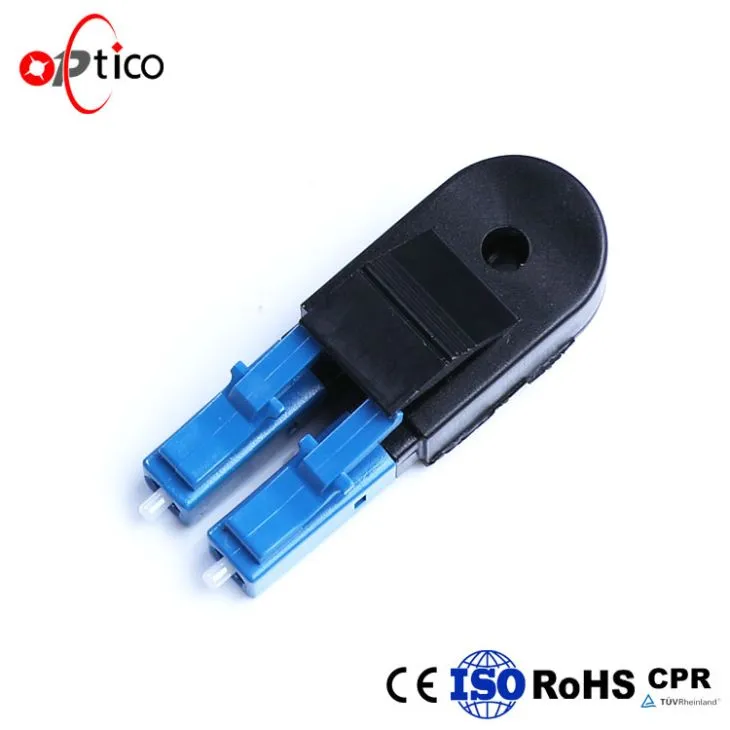

LC Fiber Optic Simplex Loop Back

LC Fiber Optic Simplex Loop Back

Fiber Optic Loopback is designed to provide a media of return patch for a fiber optic signal; Typically it is used for fiber optic testing applications or network restorations. For the testing applications, the loopback signal is used for diagnosing a problem.
Chat Now

Product Details

Description:

Fiber Optic Loopback is designed to provide a media of return patch for a fiber optic signal; Typically it is used for fiber optic testing applications or network restorations. For the testing applications, the loopback signal is used for diagnosing a problem.


Application:

CATV

Optical fiber communication systems

Optical fiber data transmission

Building network access

Cabling system, ODF

FTTX applications



Features:

Low insertion loss and high reflection loss

High temperature stability

Precise connector

Customizable length

Excellent mechanical capability

Good durability and exchangeability

Compliant with ISO9001:2008, ROHS standard



Specification:

Style

LC

Fiber Type

9/125 SMF-2

Cable Type

Simplex, LSZH

Polishing Manner

APC (8°& 6°)

Insertion Loss

≤ 0.2dB (For Singlemode Master)

Return Loss (For   Singlemode)

APC ≥ 60dB (typ.65dB)

Durability

±0.2dB typical   change,1000 matings

Interchangeablity

≤ 0.2dB

Operating   Temperature

-40°C to 85°C

Storage   Temperature

-40°C to 85°C

Geometry   Requirement
  (For Singlemode)

Ferrule Endface   Radius 7mm ≤ R ≤ 12mm
  (For APC) Apex Offset ≤ 30 μm
  Undercut -50nm ≤ U ≤ 50nm



Cerfications:


Factory:

Optico Communication Workshop(1).jpg

fiber optic factory.jpg
