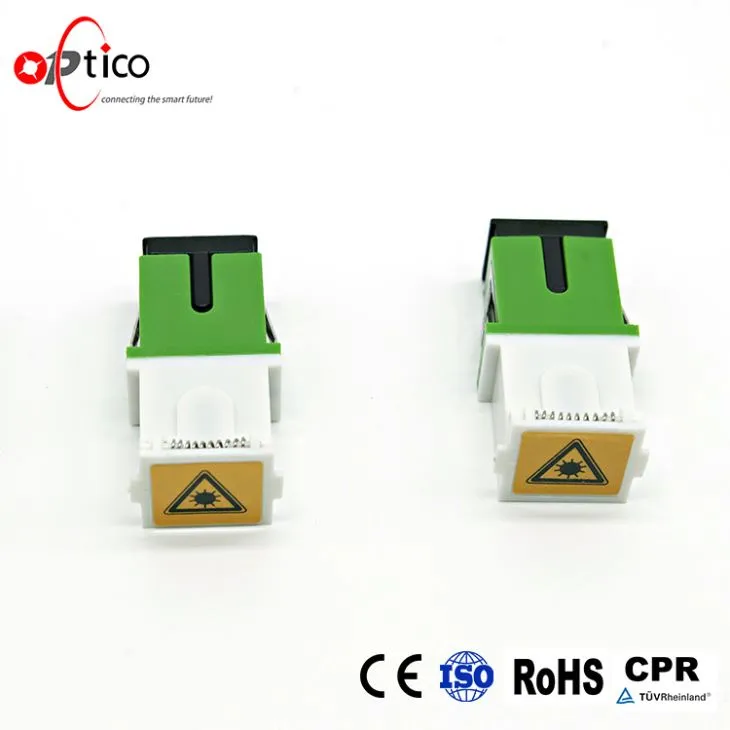

SC APC Fiber Adapter With Shutter

SC APC Fiber Adapter With Shutter

This white-green SC/APC adapter, it’s easy to distinguish the two ends, the worker can install it convenient. It can be dust-proof with shutter, is very popular in the market.
Chat Now

Product Details

SC APC Fiber Adapter With Shutter


Description:

This white-green SC/APC adapter, it’s easy to distinguish the two ends, the worker can install it convenient. It can be dust-proof with shutter, is very popular in the market.



Application:

CATV;

Active device termination;

Metro;

Telecommunication networks;

Multimedia;

Data processing networks;

Test equipment;

Local Area Networks (LANs);

Wide Area Networks (WANS);

Gigabit Ethernet



Features of SC APC Fiber Adapter With Shutter:

High precision alignment

Low insertion loss and high return loss

Telcordia, ANSI, TIA/EIA, NTT and JIS compliance

Compact design

Precision anti-rotation key and corrosion resistant body

Plastic housing

Excellent temperature stability



Specification SC APC Fiber Adapter With Shutter:

Adapter Type

SC/APC-SC/APC

Material

PBT

Insertion Loss

<=0.2dB

Durability

<=0.20dB   typical change, 1000 matings

Storage   Temperature

-40°C to +85°C

Operating   Temperature

-40°C to +85°C

Ferrule Hole   Sizes

125.0+1/-0μm,   Concentricity: <=0.5μm

125.5+1/-0μm,   Concentricity: <=0.5μm
126.0+1/-0μm,   Concentricity: <=0.5μm


SC APC adapter with shutter.jpg

sc apc fiber adapter.jpg



Certificates:


Factory:

Optico Communication Workshop(1).jpg

fiber optic factory.jpg


FAQ Of SC APC Fiber Adapter With Shutter:

1. How do you guarantee the quality?

Before the production, we would make pre-production to confirm with customers. During the production, we have professional QC to inspect the products while manufacturing. And we also warmly welcome customer's QC to inspect the goods before shipment.


2. Can you factory pass the factory audit?

Yes, our factory passed the ISO 9001:2015 certification TUV,ROSH.


3. What's the Products leadtime?

Our sample leadtime is 1 days, and bulk production time is 15-35 days when we receive the deposit and confirm the pre-production sample with customer.


4. Can I have my own logo on the products ?

Yes, we warmly welcome your own logo, the logo can stamp, laser and engrave, etc.


5.Do you offer any other goods?

Our factory mainly offer fast connector,adapter, attenuator,plc splitter,plc pipe,patch cord, pigtail, ceramic sleeve etc.
